C3WC

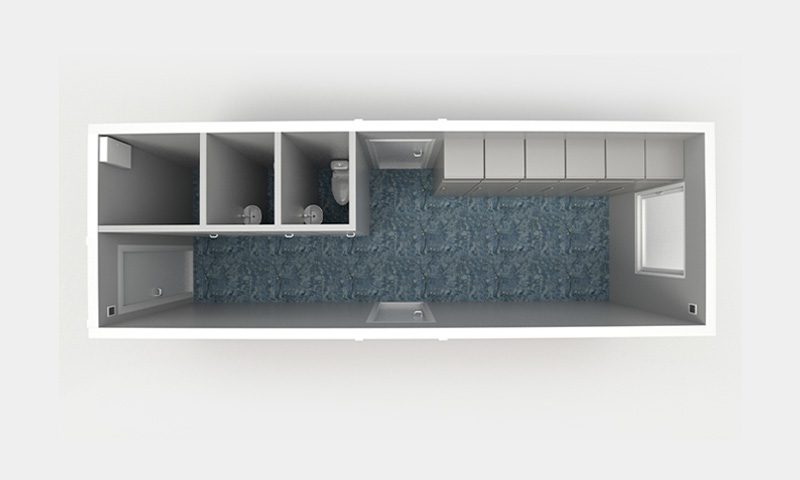

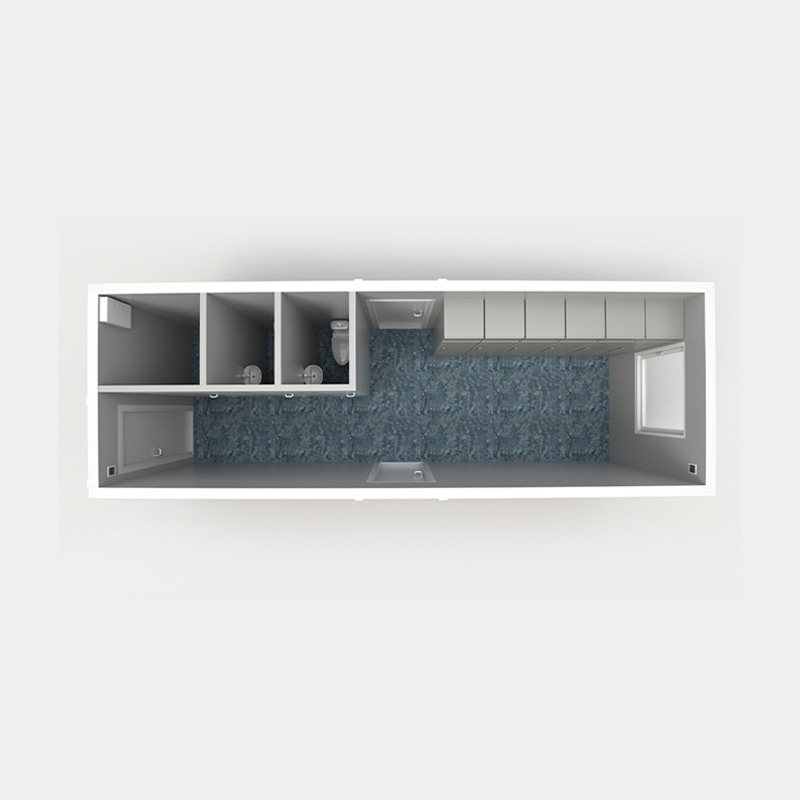

MODEL - C3WC


- 3 WC
- 6 lockers
- end door
- no internal walls


Steel frame:

120 mm U profile with openings for forklift

Floor:


12 mm OSB, moisture resistant
14x145 mm beams cc 400 mm
150 mm insulation
22 mm chipboard, moisture resistant
2 mm PVC


Doors, windows:


External doors 890x2020 - 3 pcs
Internal doors 890x1090 - 3 pcs
PVC window 1185x1385, - 2 pcs
Window bars and grid – optional

Roof:


12 mm ceiling panel
Vapour barrier
45x120 bems cc 600 mm
125 mm insulation
Windbarrier
Rafters 25-65x45 cc 300 mm
12 mm OSB, moisture resistant
1,2 mm PVC membrane


External walls:


12 mm wall panel
Vapour barrier
Timber farming 45x95 cc 600 mm
100 mm insulation
9 mm OSB
Windbarrier
Distance Laths 10-45 mm
Cover laths 18x70 mm
Siding 18x110


Internal walls:


12 mm wall panel
Timber framing 42x33
75 mm insulation
12 mm wall panel


Heating and ventilation:

Radiators 750W - 2 pcs
Ventilator d100 - 1 pc,
outside grilles – d100 - 4 pcs
Outside connection box 400 V
LED lighting – 3 pcs
